Non-sterile Markers

We produce all types and sizes of markers, all jointing types and all types of threads. The following non-sterile sizes are considered mainstream and are kept in large amounts in store.

All non-sterile markers are packaged individually in a small polyethylene zip-pack, to ensure protection during transport and storage. 40 or 50 of these small packages are put in a larger package.

20 such large packages are inside a cardboard box.

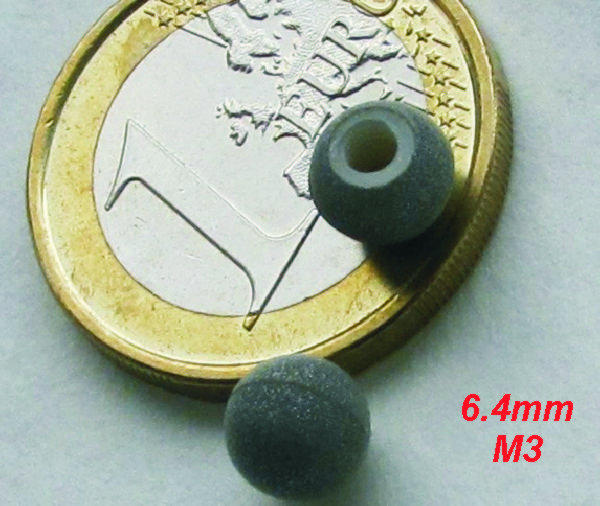

Diameter - 6.4mm

M3 pin type
Minimal q'ty 10 pcs

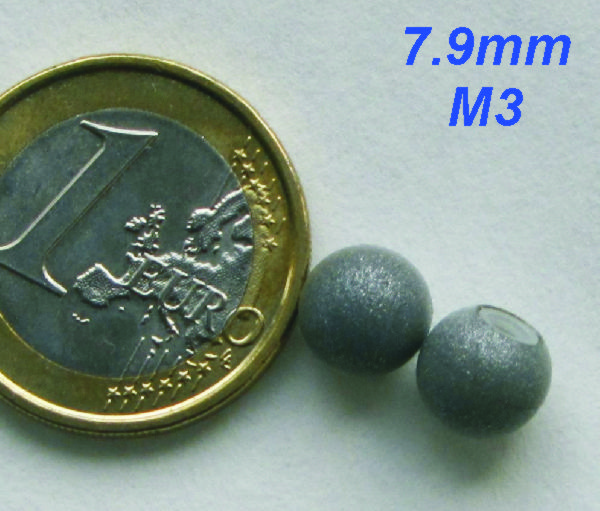

Diameter - 7.9mm

M3 pin type
Minimal q'ty 10 pcs

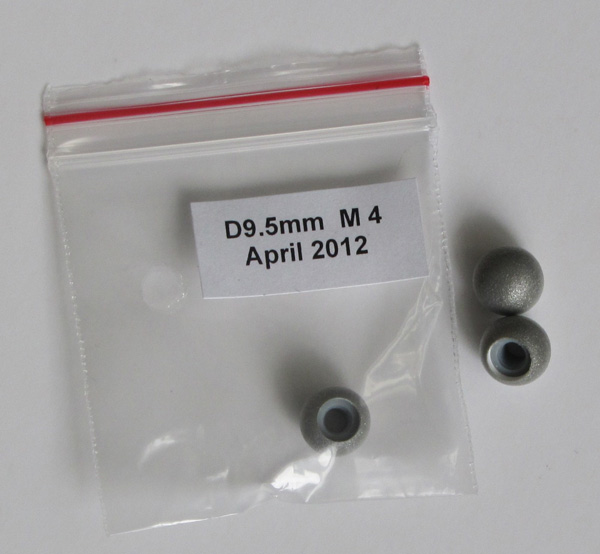

Diameter - 9.5mm

M4 sunken pin type.
Minimal q'ty 10 pcs.

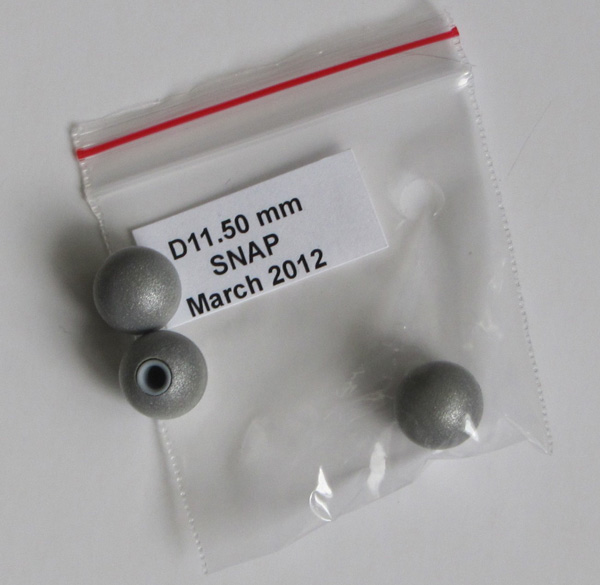

Diameter - 11.5mm
100% compatible with IGS, which use snap mounting posts.
Normally, these markers are supposed to be sold as sterile, but at a client's wish, the marker can be packaged and sold as non-sterile. The client packages and sterilizes it. Or uses it as non-sterile. The foil of these markers isn't with increased durability. This is on purpose, because these markers aren't meant to be re-used.
At a client's wish, the markers can be made with foil with increased durability.

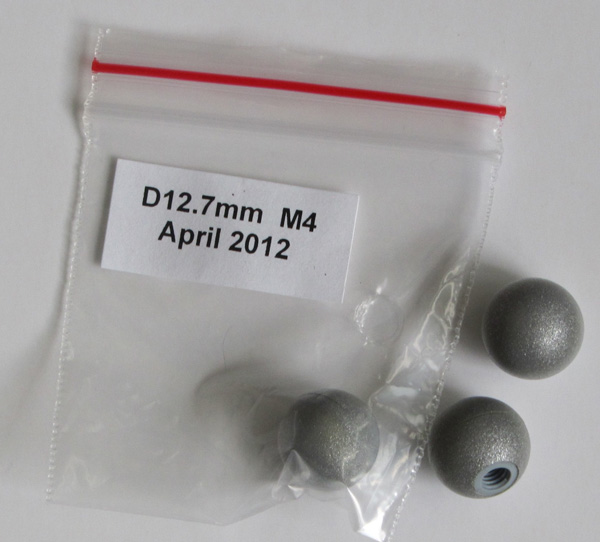

Diameter - 12.7mm

M3 normal pin type or M4 sunken pin type.
Minimal q'ty 10 pcs.

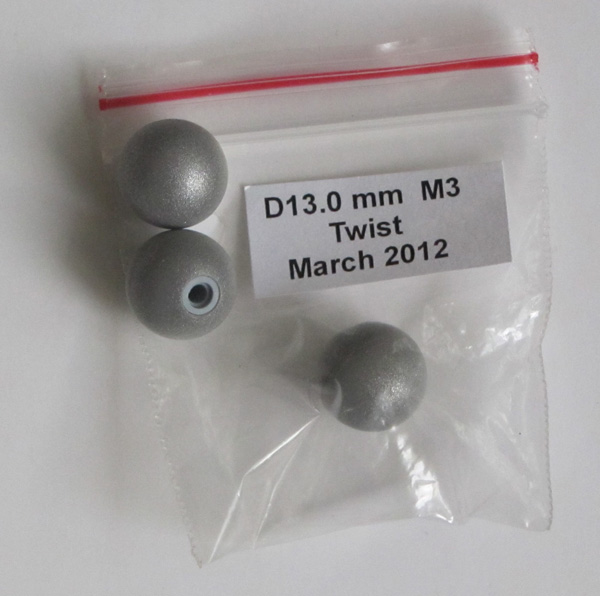

Diameter - 13.0mm

M3 Twist pin.
Normally, this is also produced to be sterile, but if the client wishes it, it can be sold as non-sterile. The foil of these markers isn't with increased durability. This is on purpose, because these markers aren't meant to be re-used.
At a client's wish, the markers can be made with foil with increased durability.

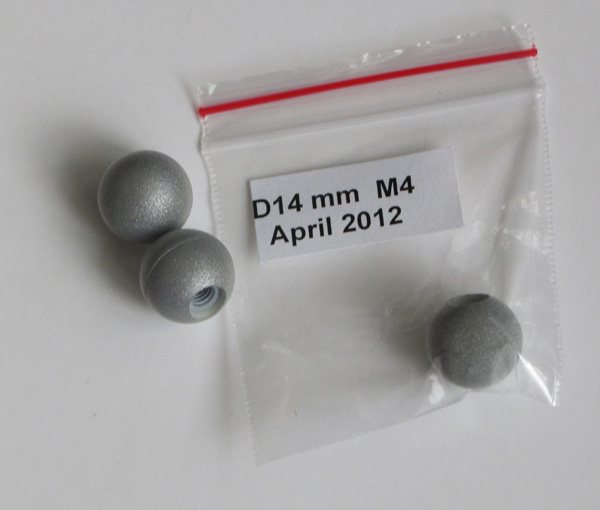

Diameter - 14.0mm

M4 sunken pin type.
Minimal q'ty 10 pcs.

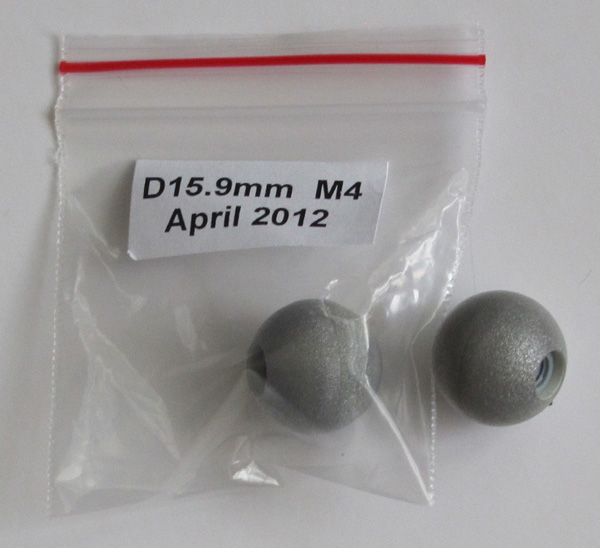

Diameter - 15.9mm

M4 sunken pin type.
Minimal q'ty 10 pcs.

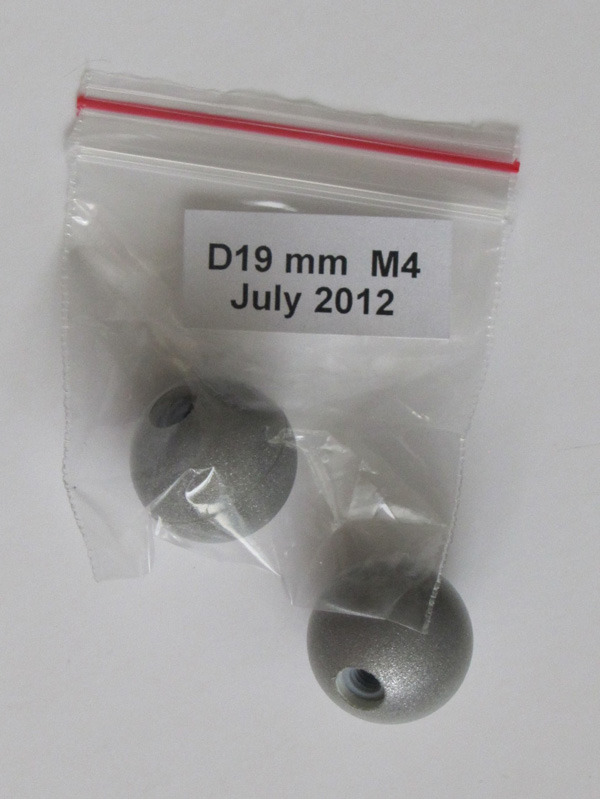

Diameter - 19.0mm

M4 sunken pin type.
Minimal q'ty 10 pcs.

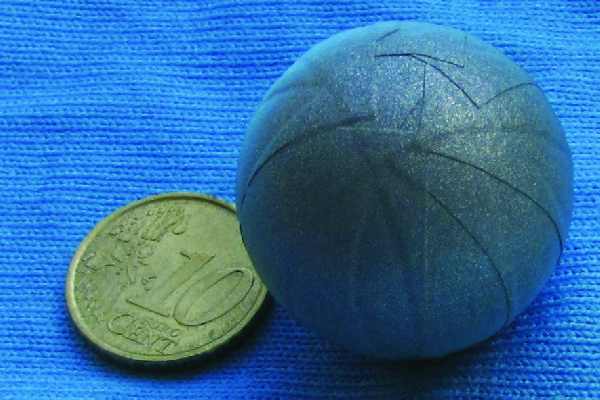

Diameter - 30.0mm

M4 or M6 or M8 pin type
Special edition - hand-coated
Minimal q'ty 10 pcs.

Sterile Markers

Our sterile disposable markers are made for image-guided surgery systems using passive tracking technology.

Such systems are used to support surgical procedures in Neurosurgery, ENT Sinus Surgery, Cranio-Maxillofacial Surgery, Spine Surgery, Trauma Surgery and in Orthopedic Surgery for Total Hip and Knee Replacements.

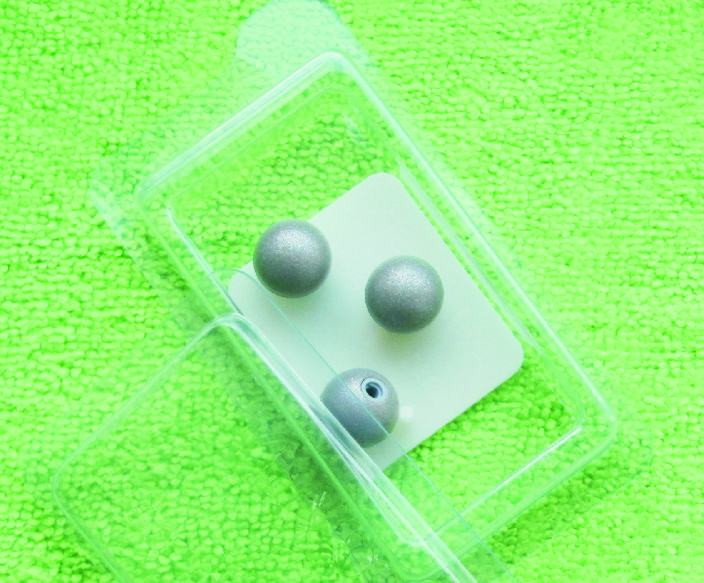

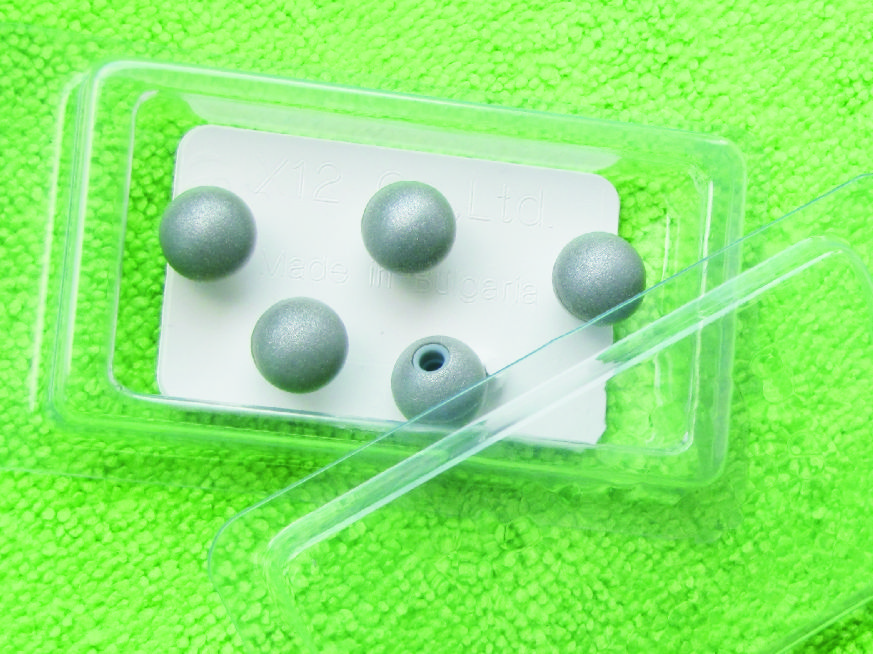

We produce two types of sterile markers – 11.5mm Snap type and 13mm Twist type.
